OEM Tail End Scraper Custom Widths Carbide Tips Adjustable V-Type Cleaner for Various Belt Speeds
Built with durability in mind, the carbide tips ensure long-lasting performance even in demanding industrial environments. Easy to install and maintain, this tail end scraper is ideal for mining, quarrying, cement, and bulk material handling operations where reliable belt cleaning is essential for maximizing productivity and reducing maintenance downtime.
- Overview
- Recommended Products
Brand |
POLISAN |

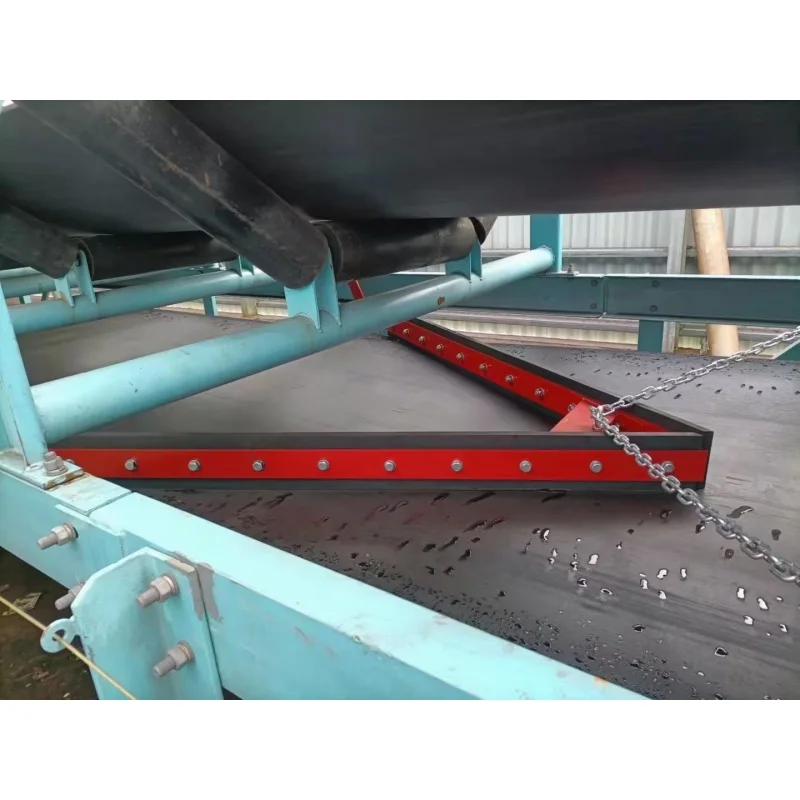

Installed on top of the return belt at the front of the belt conveyor's tail redirection pulley, it eliminates residue on the return belt's upper surface and prevents residue material from being trapped in the tail pulley, thus causing damage to the conveyor belt and the pulley. |
|
Features |
oil-resistant, wear-resistant, acid-resistant, aging-resistant |
Structural function and characteristics
|
1.The cleaning blade is made of high-strength polyurethane with high strength, high wear resistance, high elasticity and low friction coefficient, which will not harm the conveyor belt and has a long service life. 2.Unique plow-type sweeping structure makes it easier to remove the residues on the surface of the conveyor belt.
3.No manual adjustment is needed after the blade is worn, the blade compensation can be adjusted automatically according to the self weight of the cleaner.
4.The latest spring tensioning type is optional, which can make the cleaner fit the conveyor belt better, and the cleaning effect is more stable and efficient.
|
Product Model |
Belt width/(mm) |
Blade width/(mm) |
Installation part |
PLS-KQC-B650 |
650 |
1400 |
Tail return belt |
PLS-KQC-B800 |
800 |
1700 |
Tail return belt |
PLS-KQC-B1000 |
1000 |
2100 |
Tail return belt |
PLS-KQC-B1200 |
1200 |
2500 |
Tail return belt |
PLS-KQC-B1400 |
1400 |
2900 |
Tail return belt |
PLS-KQC-B1600 |
1600 |
3300 |
Tail return belt |
PLS-KQC-B1800 |
1800 |
3700 |
Tail return belt |
PLS-KQC-B2000 |
2000 |
4100 |
Tail return belt |
We have strict requirements on products‘ quality, ensure the products you use have excellent quality and perfect after-sales service.
